Steel Decking

A STEEL DECK PROFILE FOR ROOF AND FLOOR


STEEL JOISTS & DECKING

Steel deck is a cold formed corrugated steel sheet supported by steel joists or beams. It is used to support concrete or insulating membrane of a roof. It was developed to provide a structurally efficient product for use in roof and floor systems.

Features & Benefits
  • Combination of aesthetics and structure capacity

  • Concealed fasteners

  • Long clear span capabilities (FM approved)

  • High fire resistance unprotected ratings (UL/ULC approved)

Technical Information:

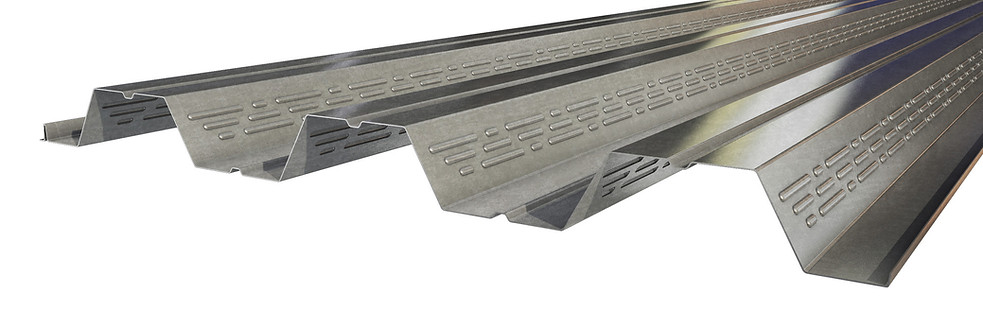

1.5B/1.5BI Roof and 1.5BL/1.5BLI Floor Deck Profile
  • Grades: 40 ksi (275 MPa), 50 ksi (345 MPa) and 80 ksi (550 MPa)

  •  Gages: 22, 20, 18 and 16

  • Width: 36 in. (914 mm)

  • Finishes: ZF75 (A25), Z90 (G30), Z180 (G60), Z275 (G90) and other on demand

  • Pending certifications: UL / ULC (File R19606) and Factory Mutual

  • Acoustic
